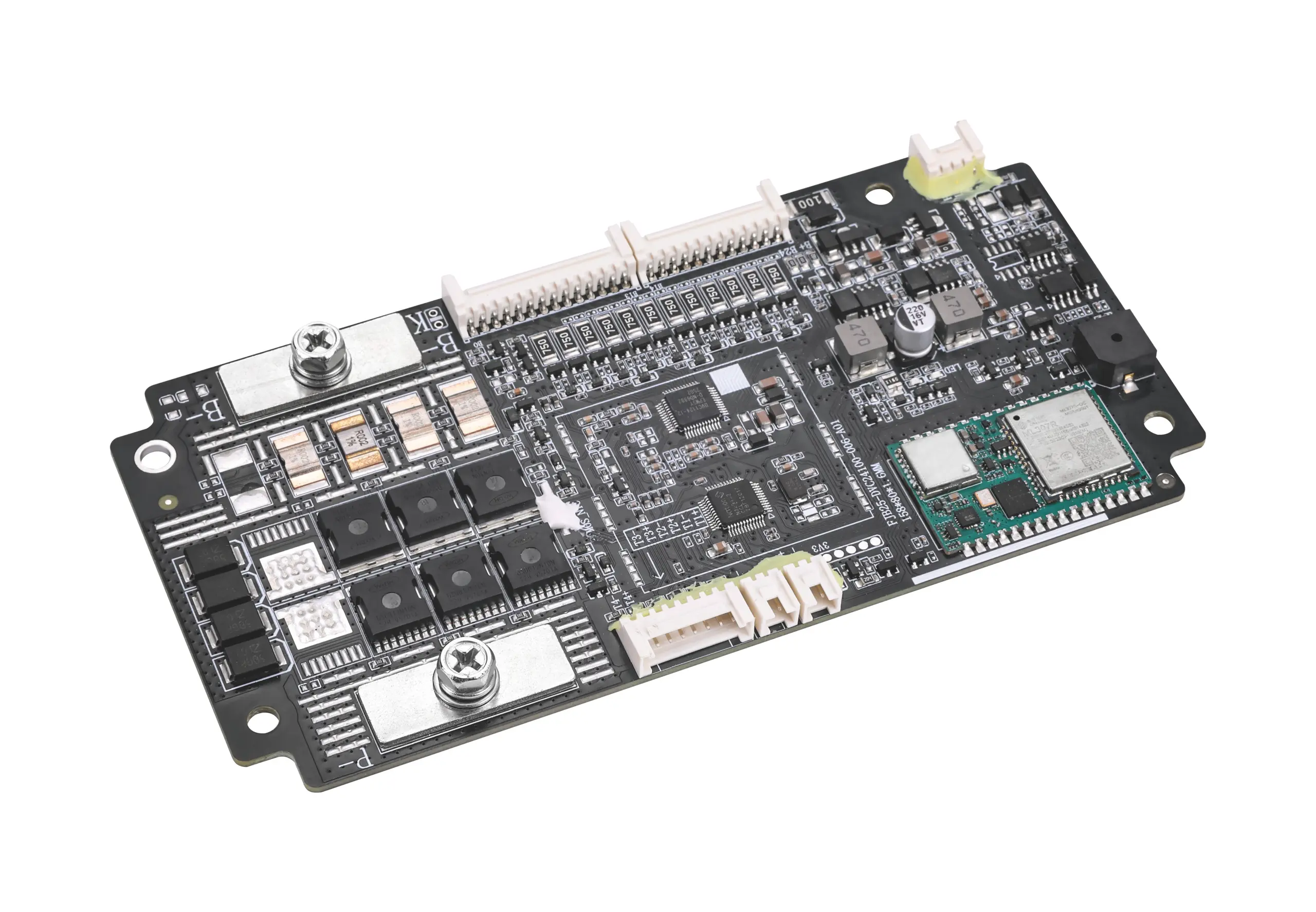

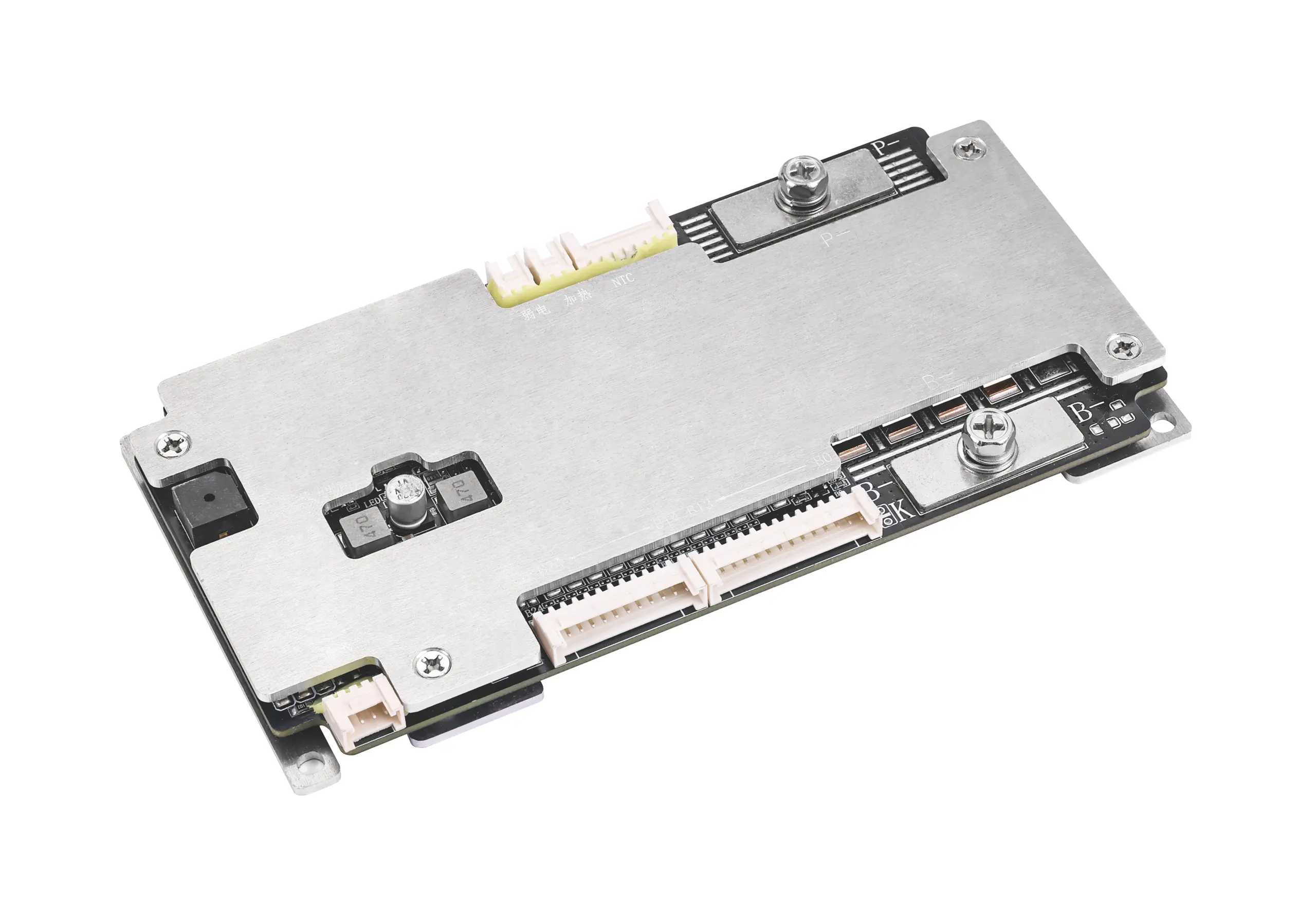

FUJIA FJB25-DVC2480/100 Shared Battery Swapping BMS With Integrated 4G GPS Cloud Monitoring

FUJIA FJB25-DVC2480/100 Shared Battery Swapping BMS With Integrated 4G GPS Cloud Monitoring

Specification Number
FJB25-DVC2480/100
Shipping
Express, Air Freight, Land Freight, Sea Freight
Contact UsSpecifications ↓
Product overviewSpecificationsContact Us
Product Introduction

Features

  1. Highly integrated 4G & GPS module design
  2. Mobile APP & WeChat Mini Program: support remote control, historical route playback, real-time status monitoring, location tracking, battery rental operation and device centralized management
  3. Cloud management platform: cloud data storage & full-lifecycle battery data logging
  4. Configurable multi-tier account permission system
  5. Batch configuration of battery parameters & remote OTA firmware upgrade
  6. Full battery maintenance & service management function
Parameter NameParameter Value
Voltage Platform Range16V-87.6V
Supported Series Count7-24S
Balancing MethodPassive balancing / Charge balancing
Balancing Current40~60mA
Operating CurrentMAX:120A
Pre-discharge FunctionSupported
Isolated CommunicationRS485/CAN (optional)
HeatingSupported (optional)
Built-in BuzzerSupported (optional)
Voltage Sampling Accuracy±10mV
SOC Accuracy & AlgorithmNCM: ≤5%, LFP: ≤8% / Current integration, OCV, temperature compensation, etc.
Single Cell Voltage Setting Range1.5-4.5V
Operating Temperature Range-20-85℃ (configurable)
Intelligent Anti-spark FunctionSupported (optional)
Built-in 4G ModuleSupported
History RecordSupported
Other FunctionsBattery parallel signal, ignition lock detection signal
Short Circuit ProtectionSupported
GPS Positioning & Remote UpgradeSupported
Low-voltage SwitchSupported (optional)
Dimensions1588015 mm
